PREMIUM H-D® TOURING ON THREE WHEELS.
Starting at $53,250AUD / $57,995NZD
*Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2018 and 2019 models.

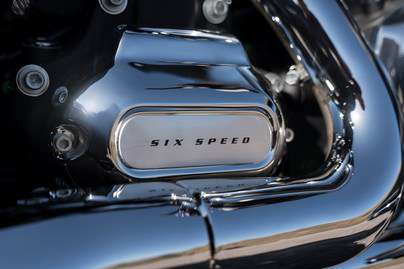

6-Speed Cruise Drive® Transmission
Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.

Batwing Fairing & Splitsteam Air Vent
Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.

BOOM!™ Box GTS Infotainment System
A new, evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider's interaction with the bike and connectivity with the world.

Daymaker™ LED Headlamp and LED Foglamps
Darkness -defying headlight to see and be seen.

All-New Braking Enhancements
Electronically linked brakes, ABS and traction control provide enhanced cornering capability. Roll with confidence.

New High Performance Suspension
Premium Harley-Davidson touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.

Trunk and King Tour-Pak™ Storage
The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak™ luggage carrier keeps things classy and neat with soft woven-nylon luggage liner and plenty of storage pockets.

Twin-Cooled™ Milwaukee-Eight® 114
The most displacement in standard H-D® Touring models. You get 1,868 cc of passing and horizon-chasing power.
Engine
- Engine 2 Twin-Cooled™ Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with tapered mufflers
Dimensions
- Length 2,670 mm
- Seat Height, Unladen 735 mm
- Ground Clearance 125 mm
- Rake (steering head) (deg) 26
- Trail 100 mm
- Wheelbase 1,670 mm
- Tyres, Front Specification MT90B16 72H
- Tyres, Rear Specification P205/65R15 92T
- Fuel Capacity 22.7 l.
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 546 kg
- Weight, In Running Order 564 kg
- Luggage Capacity -Volume 0.19 m3
Performance
- Engine Torque Testing Method J1349
- Engine Torque 3 162 Nm
- Engine Torque (rpm) 3,250
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 10.534
- Gear Ratios (overall) 2nd 7.302
- Gear Ratios (overall) 3rd 5.423
- Gear Ratios (overall) 4th 4.392
- Gear Ratios (overall) 5th 3.741
- Gear Ratios (overall) 6th 3.157
Chassis
- Wheels, Front Type Black, 7-spoke Cast Aluminium
- Wheels, Rear Type 7 Black, 7-spoke Cast Aluminium
- Brakes, Caliper Type Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
Electric
- Lights (as per country regulation), Indicator Lamps 6 High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, gear indication, low fuel warning, reverse, park brake, miles to empty display, fog/aux lamp indicator
- Gauges Display features odometer, trip A, trip B, range to empty, and gear indicator; includes telltale for reverse and traction control
Infotainment
- Infotainment system Boom!™ Box 6.5GT
- Type Full Colour TFT
- Watts Per Channel 25
- Speakers 4
- Speaker Size 5.25 inch standard
- Headset Specifications (if equipped) 16 - 64 ohms
- AM Standard
- FM Standard
- LW Standard
- SD Card, Flash Drive and MP3 - via USB Connection Supported
- Languages English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
- Hands-free Mobile Phone - via Bluetooth Standard
- Voice Recognition Languages: Phone functions only English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
- Voice Recognition Languages: Tuner/Media/Navigation English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
- Rider/Passenger Intercom Standard
- Vehicle Information Screen (Air temperature, oil pressure and EITMS) Standard
- Text-to-Speech (TTS) Languages
- English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese Standard
- USB USB/MTP/iPod/iPhone
- Bluetooth Phone/Media Supported
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.

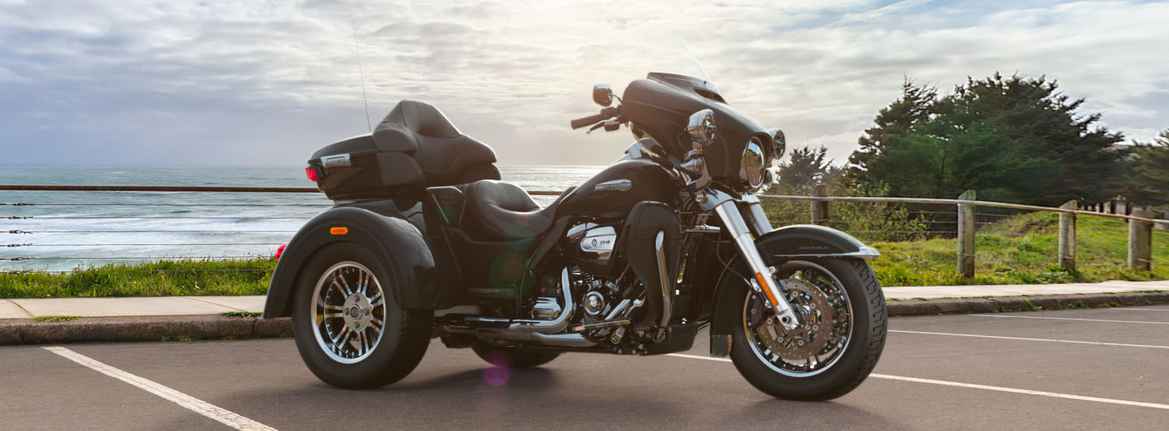

2019 TRI GLIDE ULTRA
Colours
Available Colours
-
Vivid Black
-
Twisted Cherry
-
Midnight Blue/Barracuda Silver
-
Wicked Red/Barracuda Silver
-
Kinetic Green
-
Scorched Orange/Black Denim
-
Silver Flux / Black Fuse
