MOVES YOU IN WAYS YOU'VE NEVER BEEN MOVED BEFORE
Starting at $35,495AUD / $37,500NZD
*Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2018 and 2019 models.

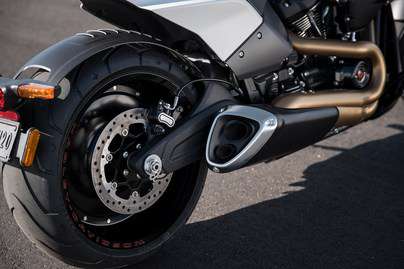

Bold 2-into-1 Exhaust
Tuned to emit a throaty rumble. Plus dramatic performance-inspired design that won't interfere with lean angle.

Milwaukee-Eight® 114 Engine
Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Minimal Weight for Maximum Performance
Designed with a number of alloy and composite components to reduce the overall weight, including an all-new aluminium swingarm and subframe. Maximises acceleration, braking and handling performance.

Modern Technologies
You get a LED Daymaker™ headlamp, LED rear lighting and LED turn signals; digital riser gauge, and a keyless ignition.

High Performance Rear Mono Shock
Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.

New Air Intake
Inspired by Screamin' Eagle® NHRA drag bikes and shaped to enhance air flow to the engine. A fresh interpretation of the Heavy Breather with an exposed, forward-facing filter element.

Racing-Style Fork
Inverted race-style design, with single-cartridge technology that improves response to steering input and braking and handling performance.

Softail® Frame
A reinvented Softail® frame that gives you more agility than you ever imagined from a bike carrying this much dragster attitude.

Stretched Fuel Tank
A sleek design that lengthens the profile of the bike to give it an aggressive look.
- Milwaukee-Eight® ENGINE :
- 114
Engine
- Engine 2 Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1; catalyst in header
Dimensions
- Length 2,425 mm
- Seat Height, Unladen 720 mm
- Ground Clearance 140 mm
- Rake (steering head) (deg) 34
- Trail 120 mm
- Wheelbase 1,735 mm
- Tyres, Front Specification 120/70ZR-19 60W
- Tyres, Rear Specification 240/40R-18 79V
- Fuel Capacity 16.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 289 kg
- Weight, In Running Order 303 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 2 160 Nm
- Engine Torque (rpm) 3,500
- Lean Angle, Right (deg.) 32.6
- Lean Angle, Left (deg.) 32.8
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type 9 Gloss/satin black, split 5-spoke, Ace cast aluminum with laser etched graphics
- Wheels, Rear Type Gloss/satin black, solid disc, Ace cast aluminum with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.

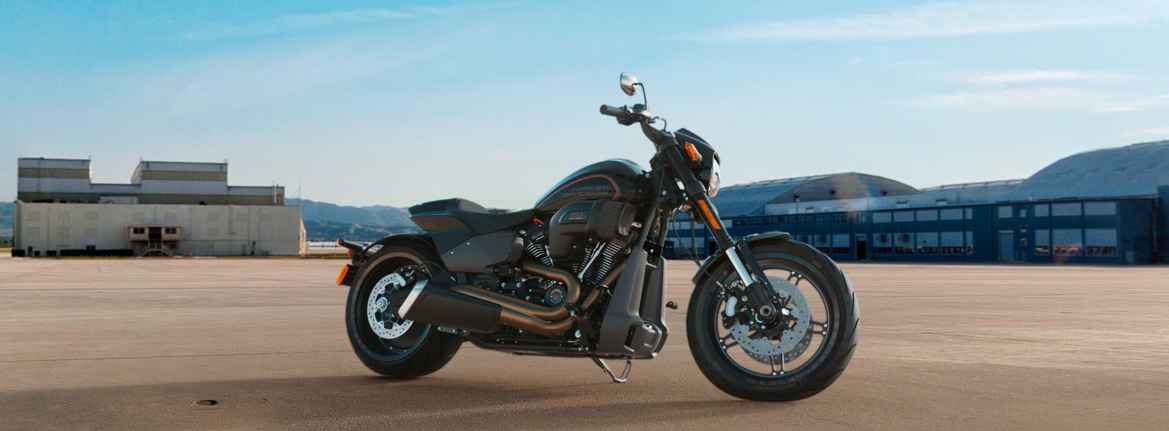

2019 FXDR 114
Colours
Available Colours
-
Vivid Black
-
Black Denim
-
Industrial Gray Denim
-
Wicked Red Denim
-
Bonneville Salt Denim
-
Rawhide Denim
