PREMIUM H-D® TOURING ON THREE WHEELS
Get all the premium features, starting with a Twin-Cooled™ Milwaukee-Eight® 114 engine, the BOOM!™ Box GTS infotainment system and enough storage space so you can pack enough to go for a good, long time.Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.

Twin-Cool™ Milwaukee-Eight® 114
The most displacement in standard H-D™ Touring models. You get 1,868 cc of passing and horizon-chasing power.

Reflex™ Defensive Rider Systems (RDRS)
A new collection of technologies that help give you confidence and control in less-than-ideal situations. The systems utilize advanced chassis control, electronic brake control and powertrain technology to assist you with accelerating and braking in a straight line or while in a turn.

Reflex™ Linked Brembo® Brakes with Standard ABS
Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

BOOM!™ Box GTS Infotainment System
An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider's interaction with the bike and connectivity with the world.

High Performance Suspension
Premium Harley-Davidson touring suspension technology is calibrated specifically for Trike models, delivering a smooth and responsive ride.

6-Speed Cruise Drive® Transmission
Provides smooth, quiet shifting and reduces engine speed on the highway, so you get a better match between engine RPM and road speed.

Trunk and King Tour-Pak™ Storage
The integrated trunk offers 4.4 cubic feet and 50 pounds of storage capacity, while the injection-molded Tour-Pak® luggage carrier adds an additional 2.4 cubic feet storage capacity, combined giving you 6.8 cubic feet of storage.

Daymaker™ LED Headlamp and LED Foglamps
Darkness-defying headlight so you can see and be seen.

Batwing Fairing & Splitsteam Air Vent
Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front.
- Milwaukee-Eight® ENGINE :
- 114
Engine
- Engine 2 Twin-Cooled™Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-1-2 dual exhaust with tapered mufflers
Dimensions
- Length 2,670 mm
- Seat Height, Unladen 735 mm
- Ground Clearance 125 mm
- Rake (steering head) (deg) 26
- Trail 100 mm
- Wheelbase 1,670 mm
- Tyres, Front Specification MT90B16 72H
- Tyres, Rear Specification P205/65R15 92T
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 546 kg
- Weight, In Running Order 564 kg
- LUGGAGE CAPACITY -VOLUME 0.19 m 3
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 162 Nm
- Engine Torque (rpm) 3,250
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 10.534
- Gear Ratios (overall) 2nd 7.302
- Gear Ratios (overall) 3rd 5.423
- Gear Ratios (overall) 4th 4.392
- Gear Ratios (overall) 5th 3.741
- Gear Ratios (overall) 6th 3.157
Chassis
- Wheels, Front Type 7 Black, 7-spoke Cast Aluminium
- Wheels, Rear Type Black, 7-spoke Cast Aluminium
- Brakes, Caliper Type Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Electric
- High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
- Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
Infotainment
- INFOTAINMENT SYSTEM Boom!â„¢ Box GTS
- TYPE Full Colour TFT
- WATTS PER CHANNEL 25
- SPEAKERS 2
- SPEAKER SIZE 6.5 inch BOOM standard
- HEADSET SPECIFICATIONS (IF EQUIPPED) 16-64 ohms
- FM Standard
- MW Standard
- LW Standard
- SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION Supported
- LANGUAGES English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- HANDS-FREE MOBILE PHONE - VIA BLUETOOTH Standard
- VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- TEXT-TO-SPEECH (TTS) LANGUAGES English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) Standard
- USB USB/MTP/iPod/iPhone
- BLUETOOTH Phone/Media Supported
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.

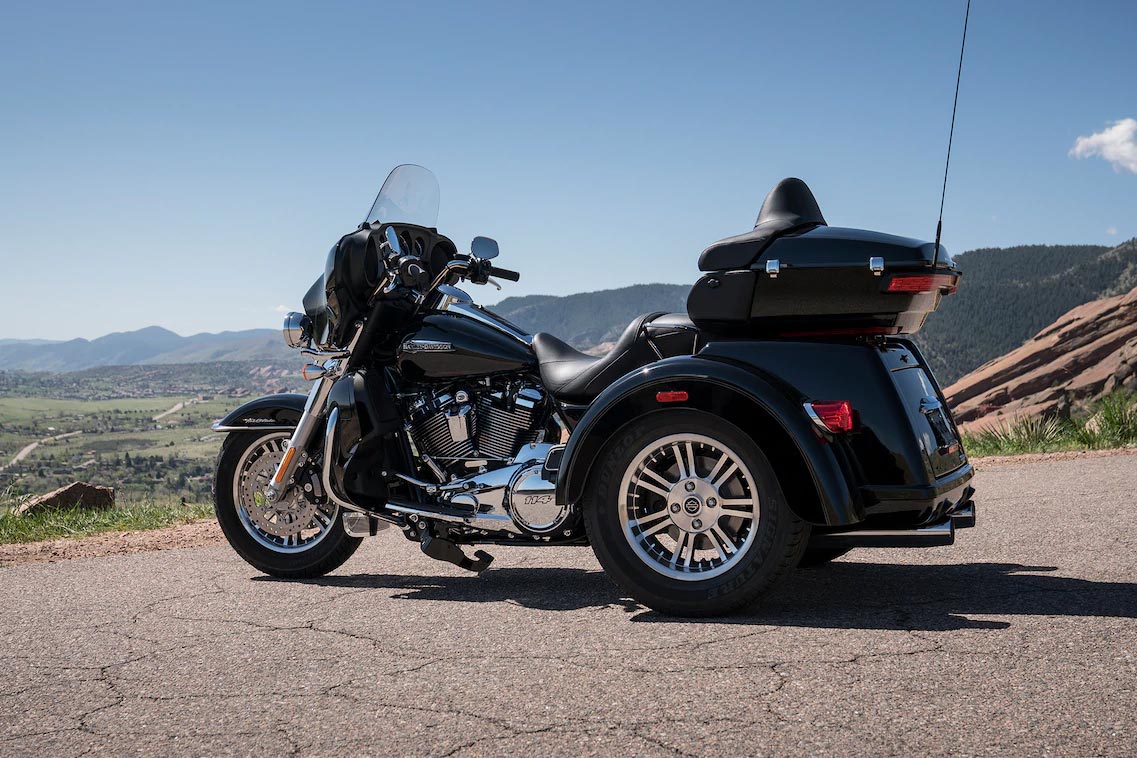

2020 Harley Davidson Trike Tri Glide Ultra

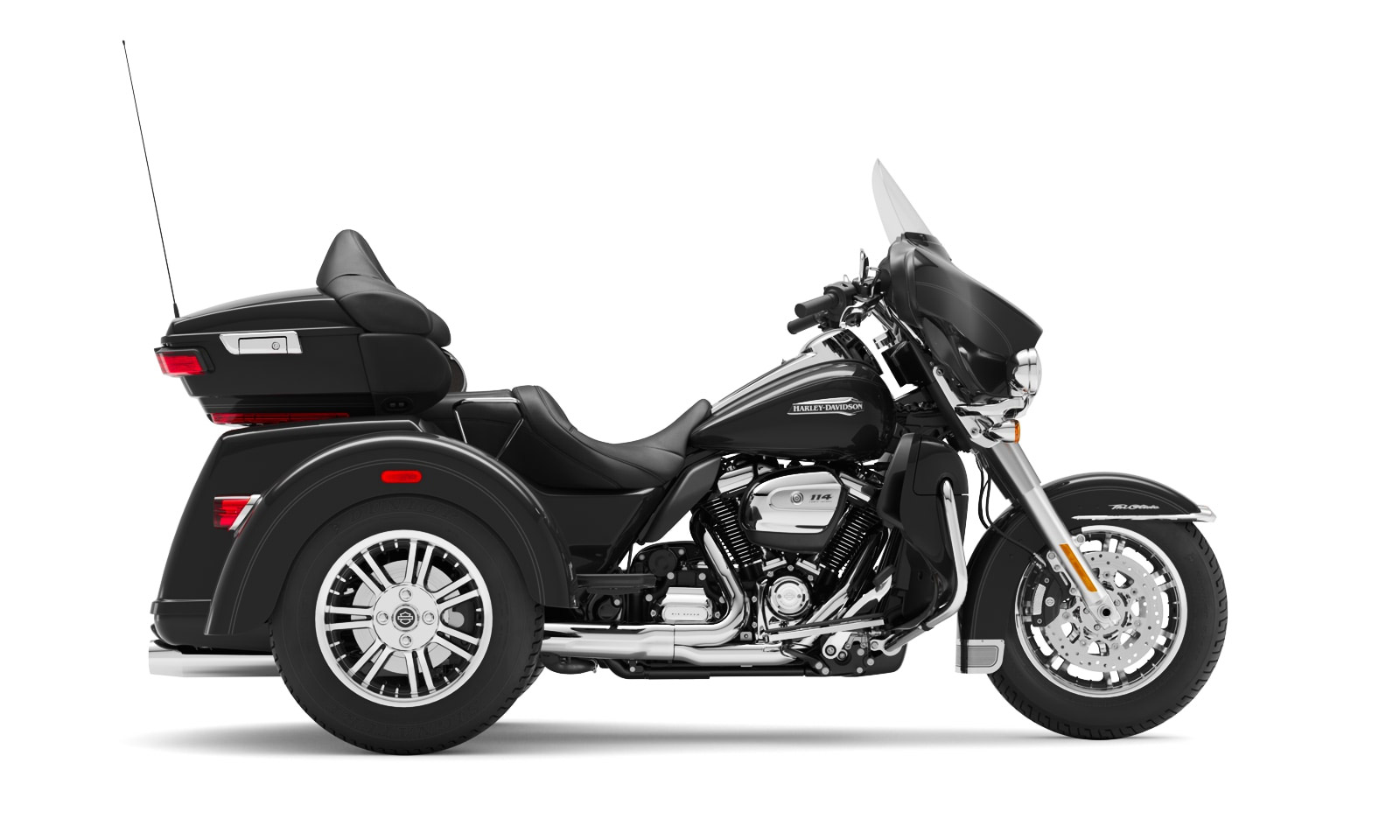

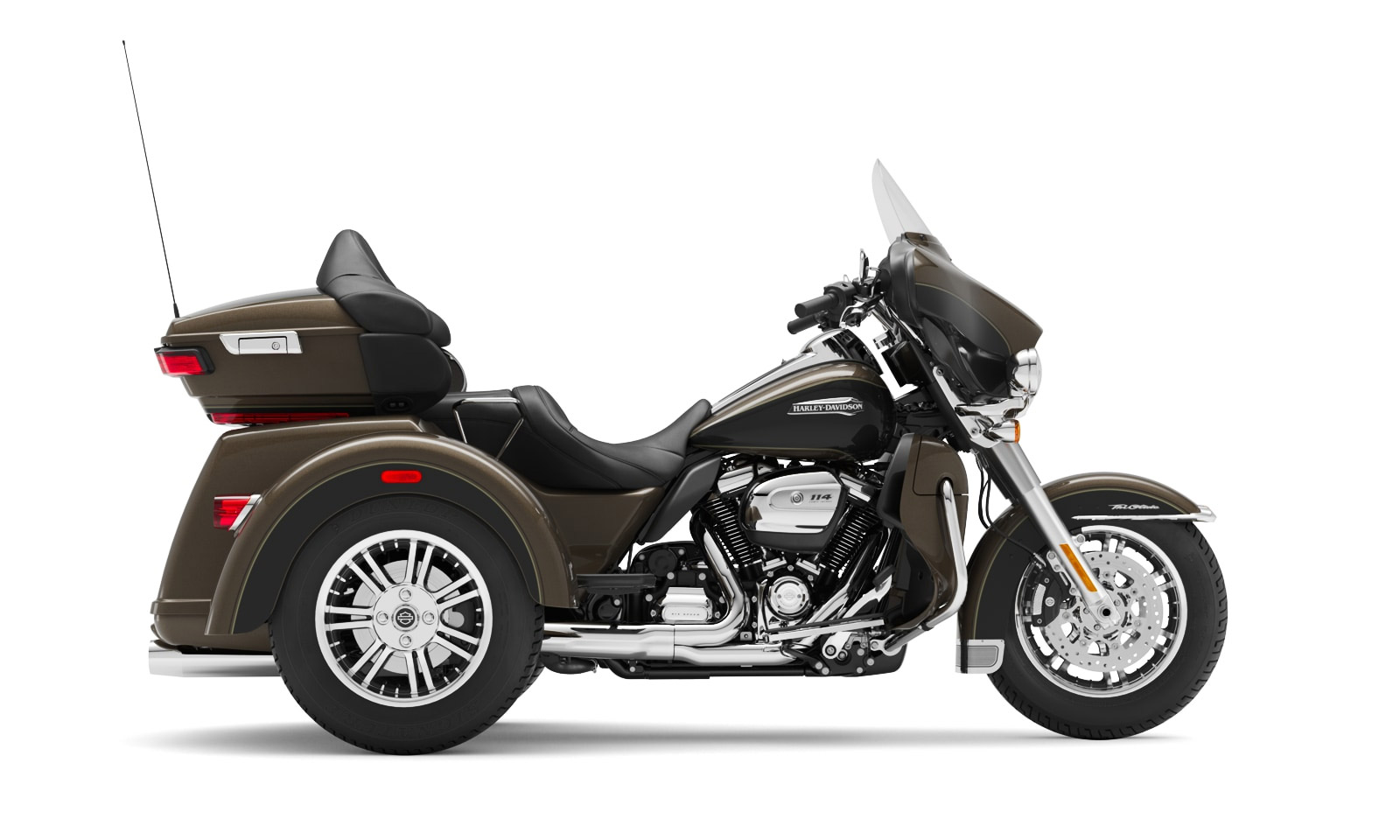

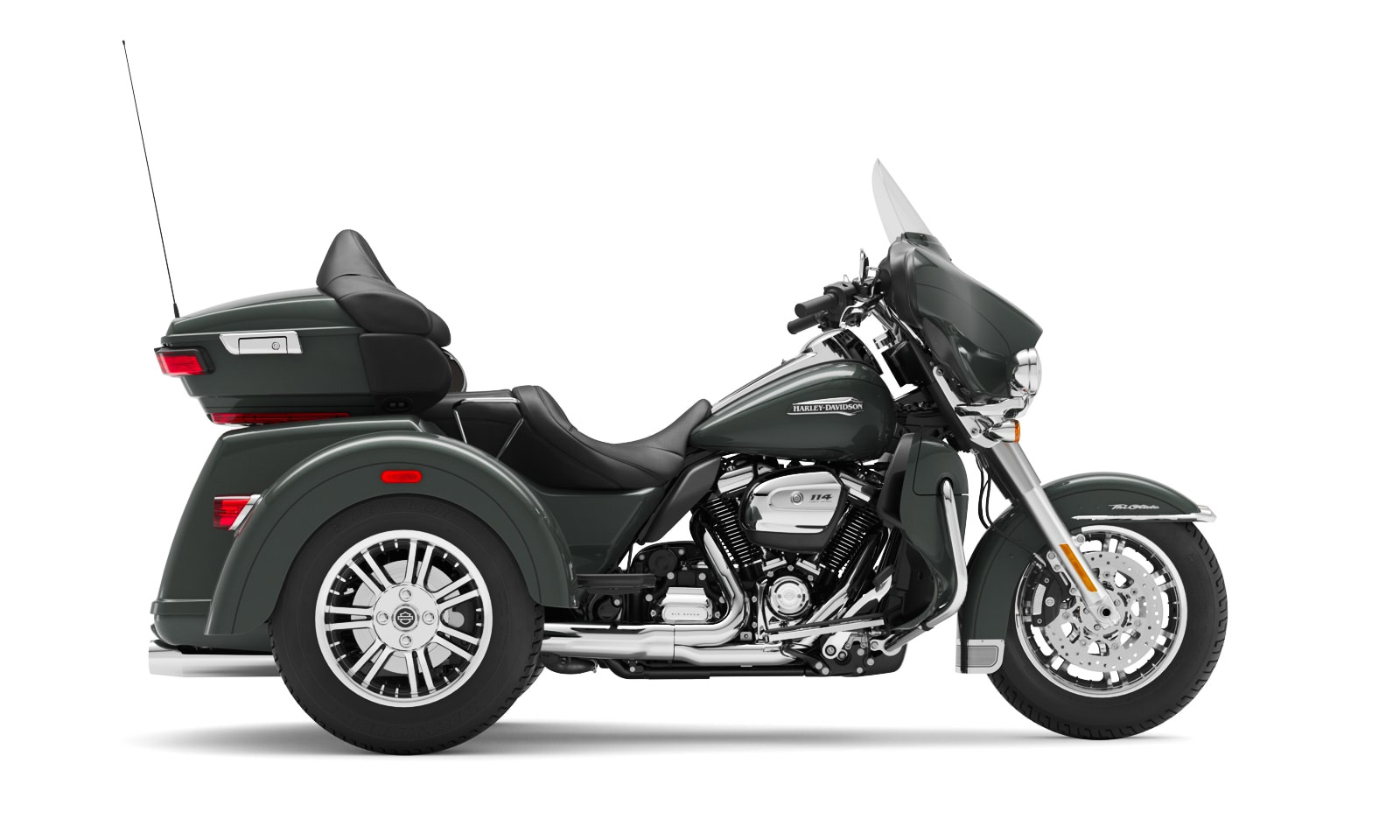

Colours
Available Colours
-
Midnight Blue - Barracuda Silver
-
River Rock Gray - Vivid Black
-
Spruce
-
Tahitian Teal
-
Vivid Black
