A NSWMENT OF INDIVIDUALITY ON TWO WHEELS
You get the 1200cc Evolution ™ engine, chrome shorty dual exhaust, and bold graphics on the tank. And that's just the start. Where it goes from there is up to you.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models

1200cc Air-Cooled Evolution™ Engine
An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency.

Custom Closed Loop Exhaust System
It delivers heart-pounding performance and a soul-satisfying rumble, and is designed to meet future worldwide emissions standards.

Blacked-Out and Chrome Details

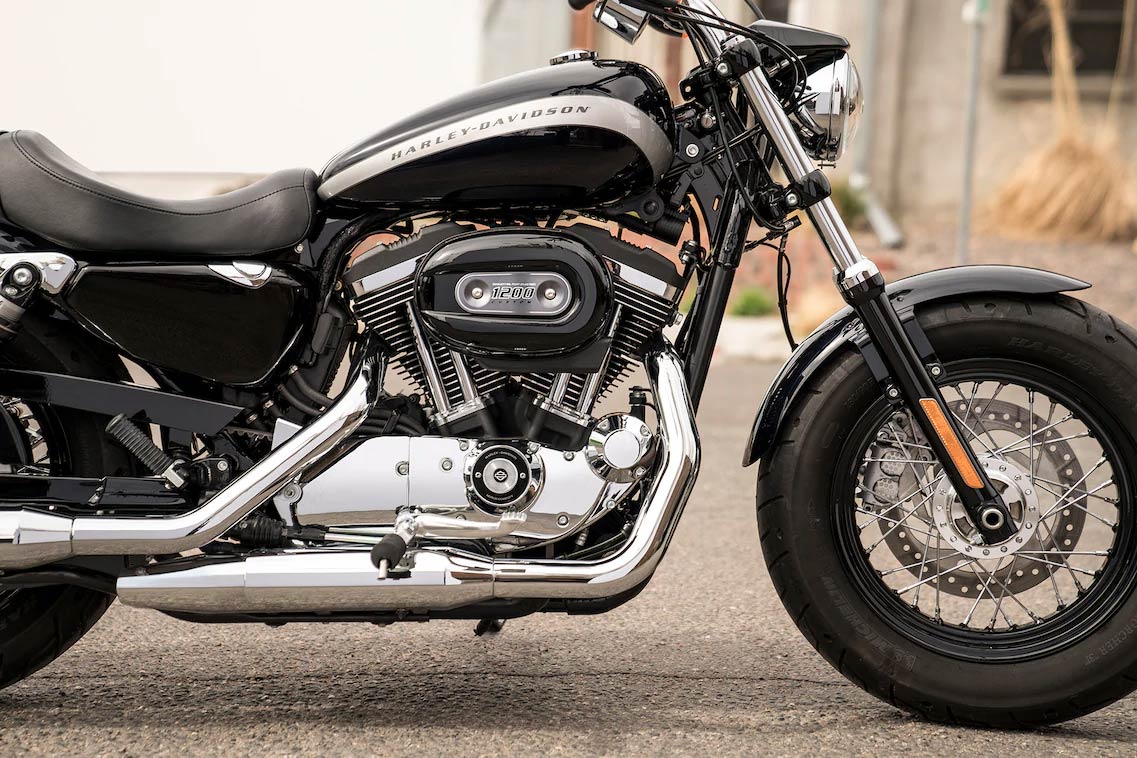

The 1200 Evolution® V-Twin engine features black rockers, a black chrome oval air cleaner cover, and a black-and-chrome timer cover. Set against all that: a chrome shorty dual tapered exhaust.

Custom-Style Paint
Features bold, fast graphics with a racing stripe on the fuel tank.

Black Laced Steel Wheels
When it comes to custom, standout wheels are a must. The sleek black laced steel wheels, for a raw, classic look wherever you roll. Custom style for a custom ride.
Engine
- Engine 2 Air-cooled, Evolution™
- Bore 88.9 mm
- Stroke 96.8 mm
- Displacement 1,202 cc
- Compression Ratio 10:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, staggered exhaust with slash-cut mufflers
Dimensions
- Length 2,225 mm
- Seat Height, Unladen 725 mm
- Ground Clearance 105 mm
- Rake (steering head) (deg) 30
- Trail 107 mm
- Wheelbase 1,530 mm
- Tyres, Front Specification 130/90B16 73H
- Tyres, Rear Specification 150/80B16 77H
- Fuel Capacity 17 l
- Oil Capacity (w/filter) 2.6 l
- Weight, As Shipped 255 kg
- Weight, In Running Order 268 kg
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 97 Nm
- Engine Torque (rpm) 3,500
- Lean Angle, Right (deg.) 26.2
- Lean Angle, Left (deg.) 28.3
Drivetrain
- Primary Drive Chain, 38/57 ratio
- Gear Ratios (overall) 1st 9.004
- Gear Ratios (overall) 2nd 6.432
- Gear Ratios (overall) 3rd 4.783
- Gear Ratios (overall) 4th 3.965
- Gear Ratios (overall) 5th 3.4
Chassis
- Wheels, Front Type Black Steel Laced
- Wheels, Rear Type 7 Black Steel Laced
- Brakes, Caliper Type Dual-piston front, Dual-piston rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system, ABS
- Gauges Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.

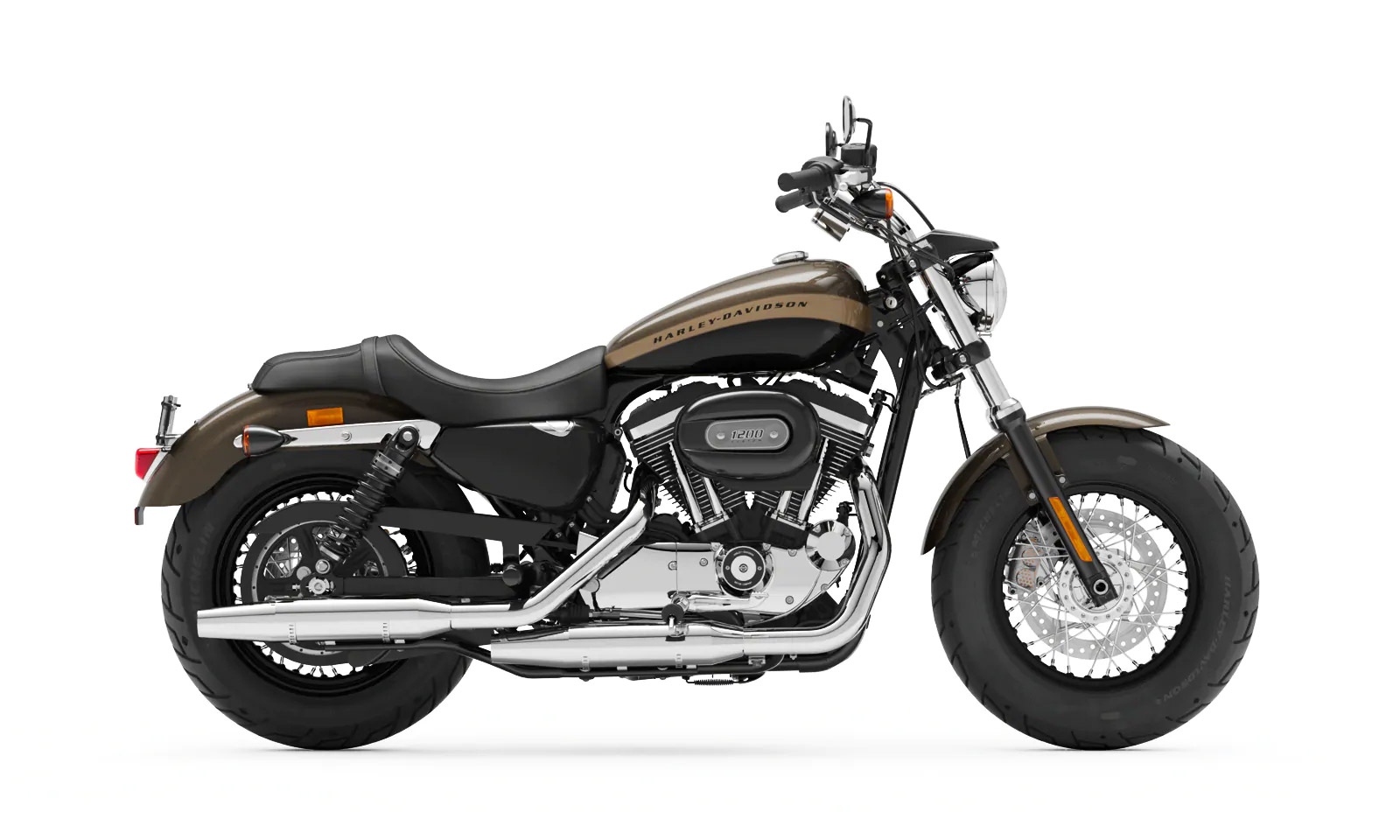

2020 Harley Davidson Sportster 1200 Custom
Colours
Available Colours
-
Midnight Blue
-
River Rock Gray
-
River Rock Gray Vivid Black
-
Red Vivid Black
