REBEL WITHOUT A PAUSE
The Street Bob motorcycle gives you the two-fists-in-the-wind riding experience stripped down to the bare essence.Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models

Stripped-Down Raw Bobber Style
Features mini-ape handlebars, spoked wheels, hidden digital instrumentation, and chopped fenders.

Softail® Frame
The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you've felt before.

Milwaukee-Eight® 107 Engine
A powerful, smooth-running Big-Twin engine with crisp throttle response and a pure, soul-satisfying rumble.

Minimalist, Modern Technology
You get digital instrumentation, keyless ignition, a USB charging port, and Signature LED forward lighting.

High Performance Front Suspension
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock
Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.
Engine
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111.1 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 offset shotgun; catalyst in muffler
Dimensions
- Length 2,320 mm
- Seat Height, Unladen 680 mm
- Ground Clearance 125 mm
- Rake (steering head) (deg) 30
- Trail 157 mm
- Wheelbase 1,630 mm
- Tyres, Front Specification 100/90B19,57H,BW
- Tyres, Rear Specification 150/80B16,77H,BW
- Fuel Capacity 13.2 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 286 kg
- Weight, In Running Order 297 kg
Performance
- Engine Torque Testing Method 134/2014
- Engine Torque 3 145 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 28.5
- Lean Angle, Left (deg.) 28.5
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
Chassis
- Wheels, Front Type Gloss Black, Steel Laced
- Wheels, Rear Type 7 Gloss Black, Steel Laced
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
Electric
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.

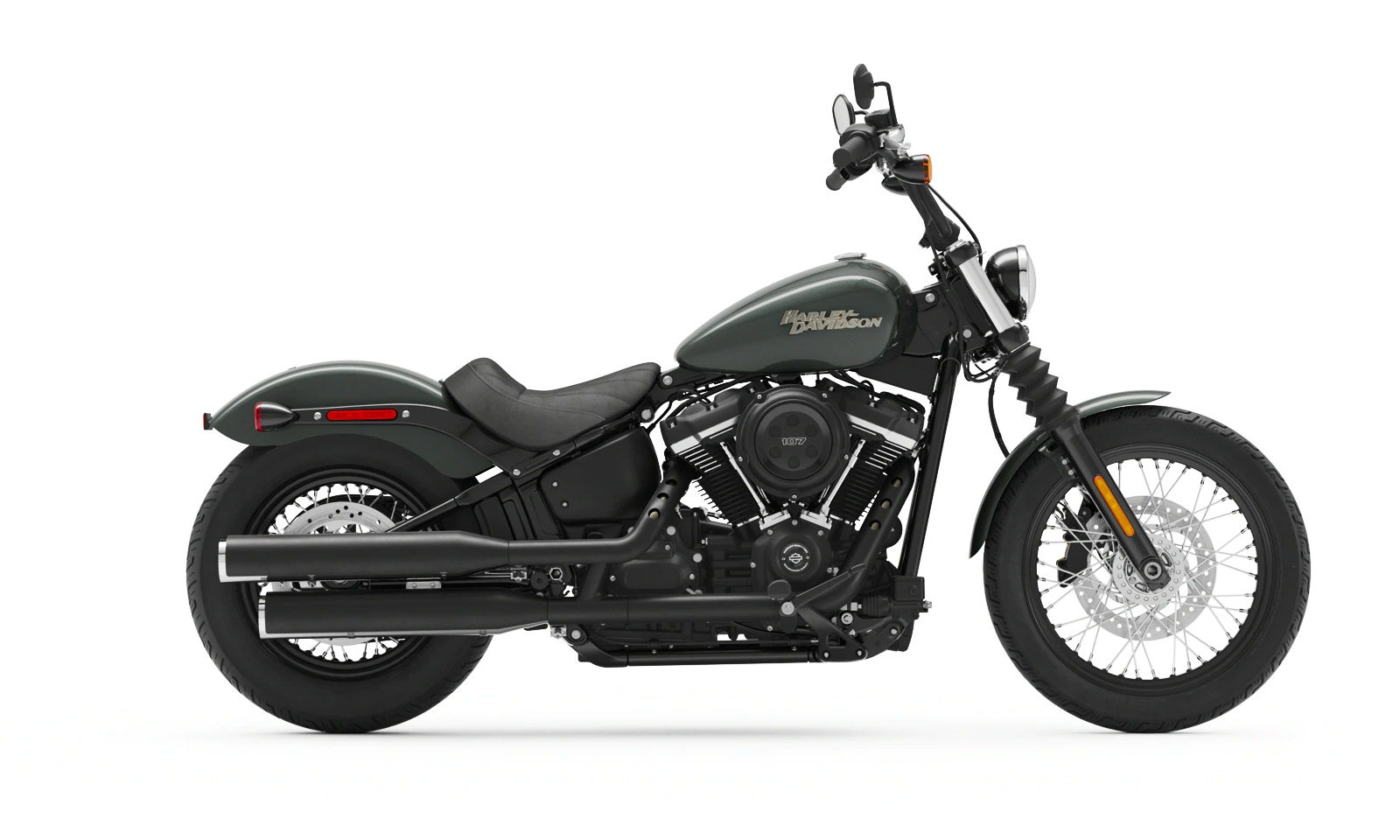

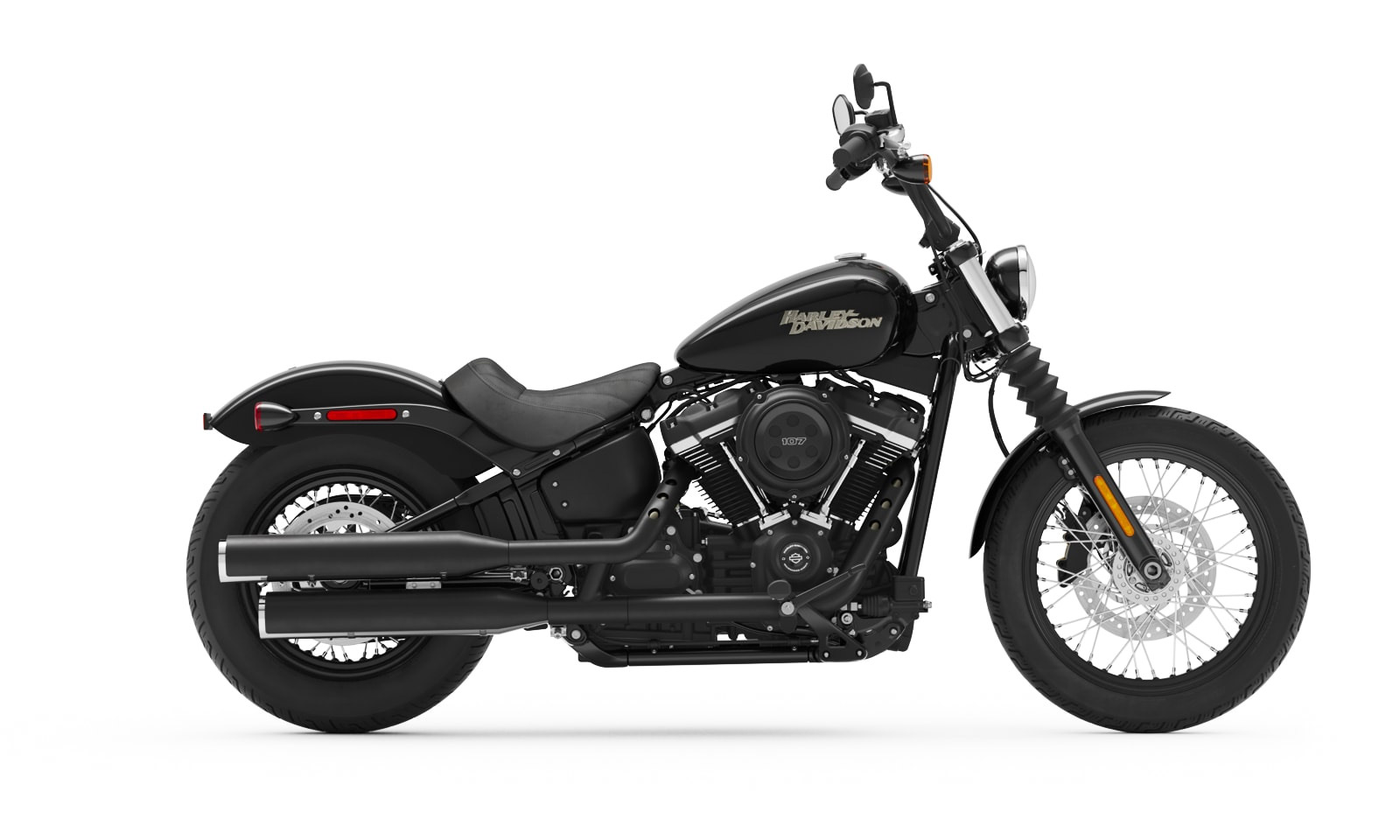

2020 Harley Davidson Softail Street Bob
Colours
Available Colours
-
Barracuda Silver Denim
-
Blliard Red Vivid Black
-
River Rock Gray Denim
-
Vivid Black
-
Spruce
