RUGGED INDIVIDUALISM TURNED TO METALWith styling reminiscent of the original in the '70s, the tradition of individualism carries on in the powerful Low Rider™ motorcycle.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.

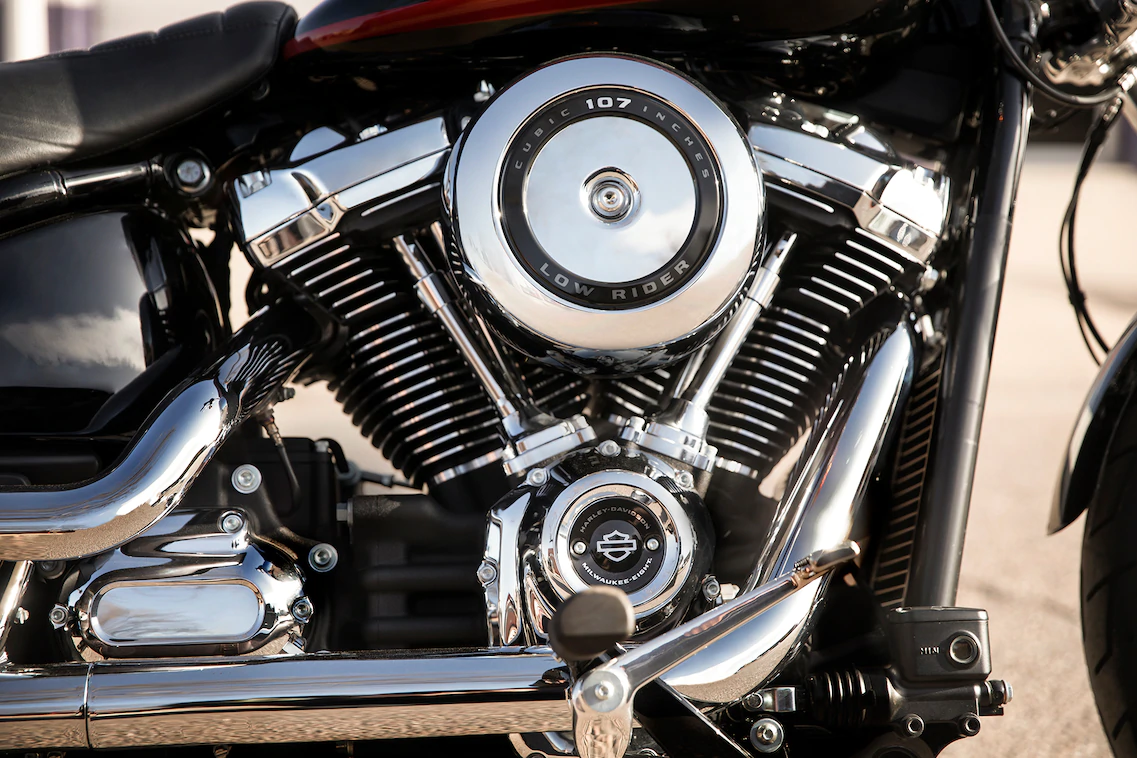

Milwaukee-Eight® 107 Engine
High Performance Front Suspension
High Performance Rear Mono Shock
Signature LED Forward Lighting
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 shotgun; catalyst in muffler
- Length 2,355 mm
- Seat Height, Unladen 690 mm
- Ground Clearance 130 mm
- Rake (steering head) (deg) 30
- Trail 163 mm
- Wheelbase 1,630 mm
- Tyres, Front Specification 110/90B19,62H,BW
- Tyres, Rear Specification 180/70B16,77H,BW
- Fuel Capacity 18.9 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 287 kg
- Weight, In Running Order 300 kg
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 145 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 29.6
- Lean Angle, Left (deg.) 29.6
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
- Wheels, Front Type Black, machine highlighted, Radiate cast Aluminium wheel
- Wheels, Rear Type 7 Black, machine highlighted, Radiate cast Aluminium wheel
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 4 inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication; 4 inch analog tachometer
- Prices listed are the Manufacturerâ€™s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.
2020 Harley Davidson Softail Low Rider
Stone Washed White Pearl
