MOVES YOU IN WAYS YOU'VE NEVER BEEN MOVED BEFOREThe all-new FXDR™ 114 is a feast for the eyes with performance and attitude that's off the leash. Fast on the straights. Agile in the corners. It'll blow away your senses.
Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.
Milwaukee-Eight 114® Engine
Minimal Weight for Maximum Performance
Bold 2-into-1 Exhaust
Stretched Fuel Tank
High Performance Rear Mono Shock
- Milwaukee-Eight® ENGINE :
- Engine 2 Milwaukee-Eight® 114
- Bore 102 mm
- Stroke 114 mm
- Displacement 1,868 cc
- Compression Ratio 10.5:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-1; catalyst in header
- Length 2,425 mm
- Seat Height, Unladen 720 mm
- Ground Clearance 140 mm
- Rake (steering head) (deg) 34
- Trail 120 mm
- Wheelbase 1,735 mm
- Tyres, Front Specification 120/70ZR-19 60W
- Tyres, Rear Specification 240/40R-18 79V
- Fuel Capacity 16.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 289 kg
- Weight, In Running Order 303 kg
- Engine Torque Testing Method EC 134/2014
- Engine Torque 2 160 Nm
- Engine Torque (rpm) 3,500
- Lean Angle, Right (deg.) 32.6
- Lean Angle, Left (deg.) 32.8
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
- Wheels, Front Type 9 Gloss/satin black, split 5-spoke, Ace cast aluminum with laser etched graphics
- Wheels, Rear Type Gloss/satin black, solid disc, Ace cast aluminum with laser etched graphics
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
- Lights (as per country regulation), Indicator Lamps 8 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.

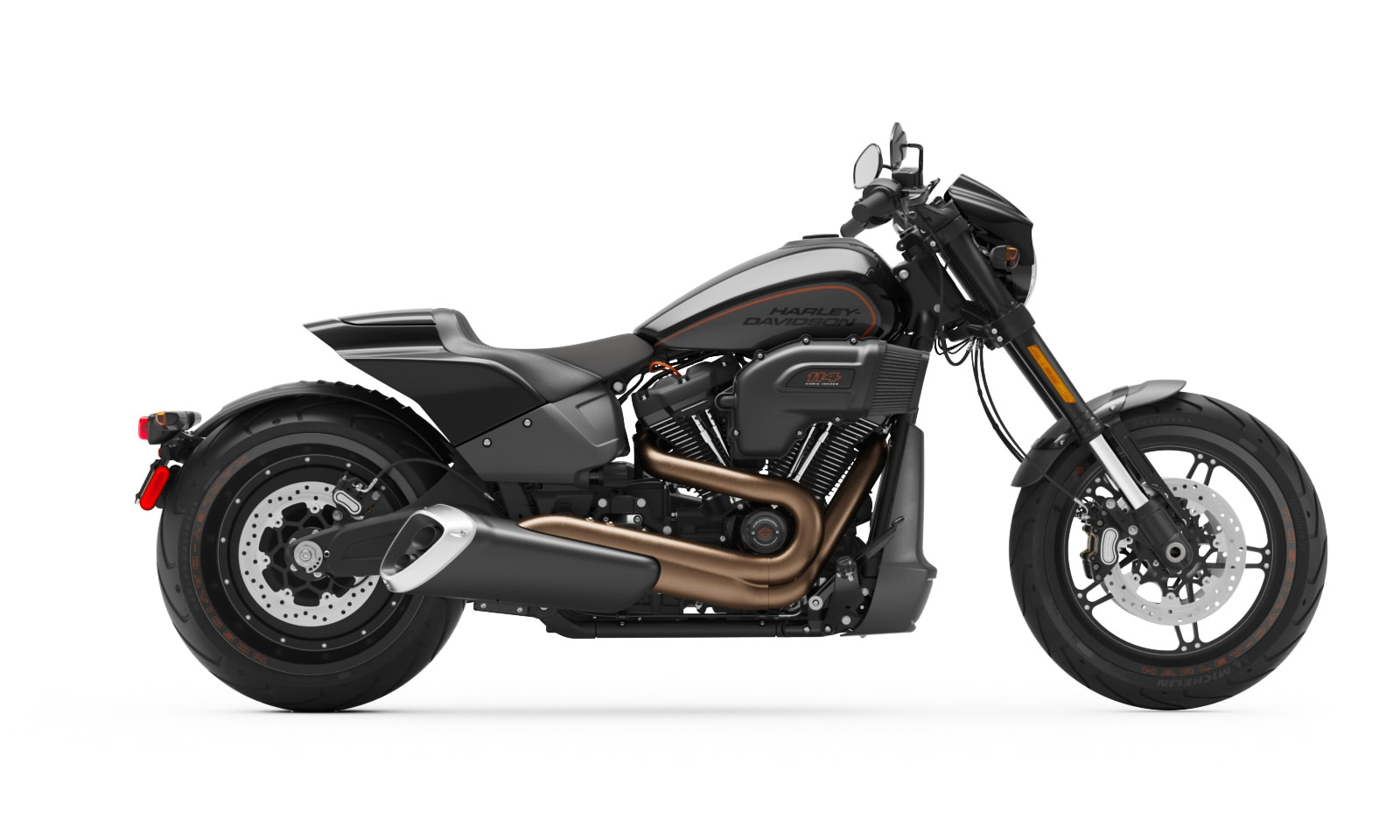

2020 Harley Davidson Softail FXDR 114
Barracuda Silver Denim
River Rock Gray Denim
