NOW YOU CAN REALLY HAVE IT ALL

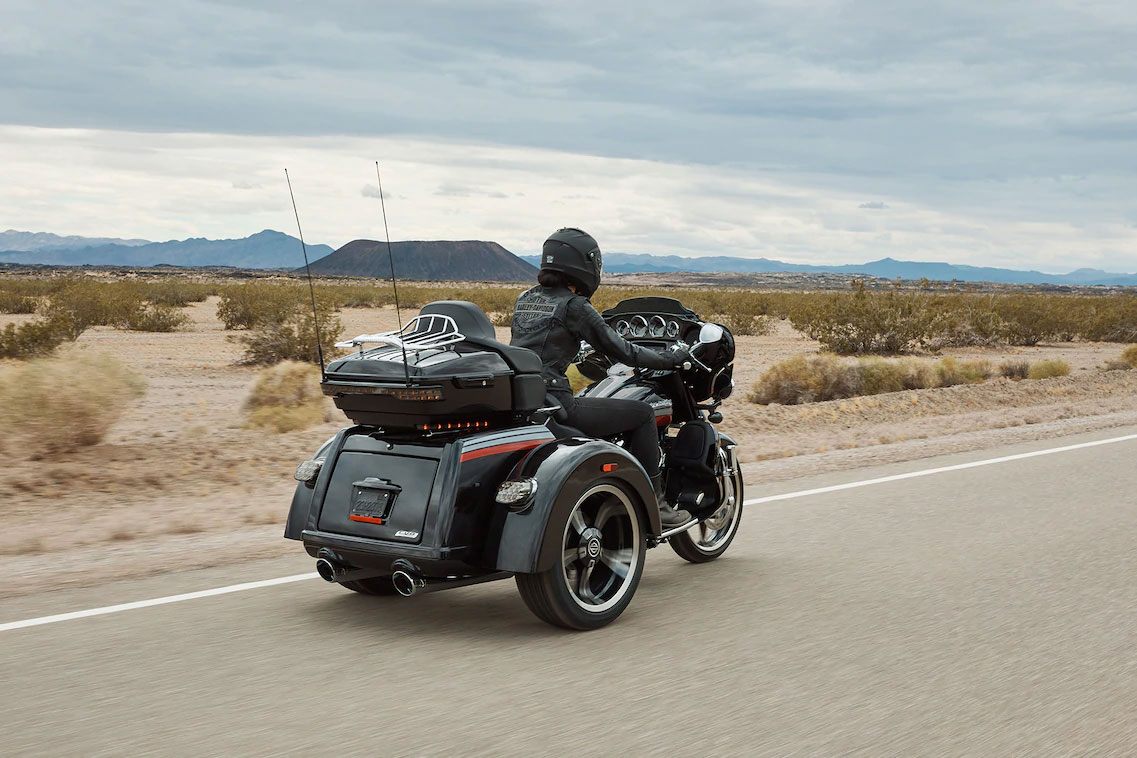

The all-new CVO™ Tri Glide® is a custom trike that's loaded with more premium touring features than you could ever imagine.Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact your local Harley-Davidson dealership for more information. All comparisons made are between original equipment 2019 and 2020 models.

Milwaukee-Eight® 117 Engine
The most powerful Twin-Cooled V-Twin engine ever offered from the H-D® factory, and only available in CVO™ models. Features color accented Rocker Box Lowers with Blaze Red finish.

Reflex™ Defensive Rider Systems
A new standard package, Reflex™ Defensive Rider Systems is a collection of technology designed to match motorcycle performance to available traction during acceleration, deceleration and braking.

Premium paints and finishes
Exclusive paint colors and designs executed to a level of intricate quality that is unmatched in the motorcycle and automotive categories.

BOOM!™ Box GTS Infotainment System
An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider's interaction with the bike and connectivity with the world.

High-Performance Touring Suspension
Dual bending valve front suspension and emulsion rear suspension with hand-adjustable pre-load put you in control of a plush ride.

LED Lighting
The lighting is all LED: headlamp, fog lamps, tail and brake lamps and signals. See and be seen with these darkness-defying lights.

Tomahawk™Contrast Cut Wheels
Features a Front 19-inch and new Rear 18-inch wheel with custom style-matched hubcap.

Premium Heated Seats
The rider and passenger seat covers are heated for riding comfortably, and longer, in cooler weather.

Custom Touring Style
Full-on custom treatment from fender to fender. You get custom seat covers and stitching, a heavy breather air cleaner with two paint treatments, billet fairing mount mirrors-the list goes on.

Wireless Headset
The Boom!™Audio 30K Bluetooth® headset lets you call hands-free on your Bluetooth® mobile phone, listen to stereo music or voice instructions of GPS navigation and have intercom conversations with your passenger or fellow riders.
- Milwaukee-Eight® ENGINE :
- 114
Engine
- Engine 2 Twin-Cooled™ Milwaukee-Eight™ 117
- Bore 104 mm
- Stroke 114 mm
- Displacement 1,923 cc
- Compression Ratio 10.2:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust Chrome, 2-1-2 dual exhaust with slash cut mufflers
Dimensions
- Length 2,670 mm
- Seat Height, Unladen 715 mm
- Ground Clearance 130 mm
- Rake (steering head) (deg) 26
- Trail 100.1 mm
- Wheelbase 1,670 mm
- Tyres, Front Specification 130/60B19 M/C 61H
- Tyres, Rear Specification P215/45R18 83T
- Fuel Capacity 22.7 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 563 kg
- Weight, In Running Order 577 kg
- LUGGAGE CAPACITY -VOLUME 0.19 m3
Performance
- Engine Torque Testing Method EC 134/2014
- Engine Torque 3 168 Nm
- Engine Torque (rpm) 3,500
Drivetrain
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 10.534
- Gear Ratios (overall) 2nd 7.302
- Gear Ratios (overall) 3rd 5.423
- Gear Ratios (overall) 4th 4.392
- Gear Ratios (overall) 5th 3.741
- Gear Ratios (overall) 6th 3.157
Chassis
- Wheels, Optional Style Type Charcoal Grey with Contrast Satin Tomahawk
- Wheels, Front Type7 Gloss Black and Contrast Clear Tomahawk
- Wheels, Rear Type Gloss Black and Contrast Clear Tomahawk
- Brakes, Caliper Type Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
Electric
- High Beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, low fuel warning, reverse, park brake, fog/aux lamp indicator, traction control, security/fault indication, coolant temp, turn signal, ABS, TPMS
- Gauges Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure
Infotainment
- INFOTAINMENT SYSTEM Boom!™ Box GTS
- TYPE Full Colour TFT
- WATTS PER CHANNEL 25
- SPEAKERS 2
- SPEAKER SIZE 6.5 inch BOOM standard
- HEADSET SPECIFICATIONS (IF EQUIPPED) 16-64 ohms
- FM Standard
- MW Standard
- LW Standard
- SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION Supported
- LANGUAGES English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- HANDS-FREE MOBILE PHONE - VIA BLUETOOTH Standard
- VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- TEXT-TO-SPEECH (TTS) LANGUAGES English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean (not Navigation), Chinese (not Navigation), Siamese (Thai), Bahasa (Indonesian), Arabic
- VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) Standard
- USB USB/MTP/iPod/iPhone
- BLUETOOTH Phone/Media Supported
- Prices listed are the Manufacturer’s Suggested Retail Prices for base models. Options such as color are available at additional cost. Prices exclude tax, title, licensing, registration fees, destination charges, added accessories, and additional dealer charges, if any, and are subject to change. Harley-Davidson reimburses dealers for performing manufacturer-specified pre-delivery inspection and setup tasks. Dealer prices may vary.
- Recommended 91 octane (95 RON) or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- Standard and optional wheels may vary by country and region.
- Riding range estimates provided following the WMTC 134/2014 Annex VII Appendix 3.3 are based on expected performance of a fully-charged battery when operated under specific conditions. Actual range will vary depending on riding habits, ambient weather and equipment conditions. Range as shown is with maximum power and minimum regeneration selected.
2020 Harley Davidson CVO Tri Glide
Colours
Available Colours
-
Black Stardust - Magnetic Gray - Wicked Red
-
Blizzard White Pearl - Lightning Silver - Storm Cloud
